Forged vs. Buttweld Fittings
Forged fittings are used for piping systems below 2 or 4 inches in
diameter (4″ for 2000#/3000# fittings, 2″ for 6000#/9000#
fittings), whereas buttweld fittings are used for larger diameter
piping.
The two main types of forged fittings are the so-called socket weld
fittings (which are connected to pipes by fillet welds) and
threaded fittings (the pipe is screwed onto the fitting).
The ASME B16.11, MSS SP 75, MSS SP 83, MSS SP 95 specifications
cover forged fittings (socket weld and threaded) to fit ASME B36.10
and ASME B36.19 carbon, alloy, stainless steel and nickel alloy
pipes of small bore size.
Forged fittings are manufactured from solid blocks of steel, that
are machined to obtain the final required shape within the
tolerances set by the applicable specifications mentioned above.
This is different from buttweld fittings, which are manufactured by
cutting, bending and shaping seamless or welded steel pipes.

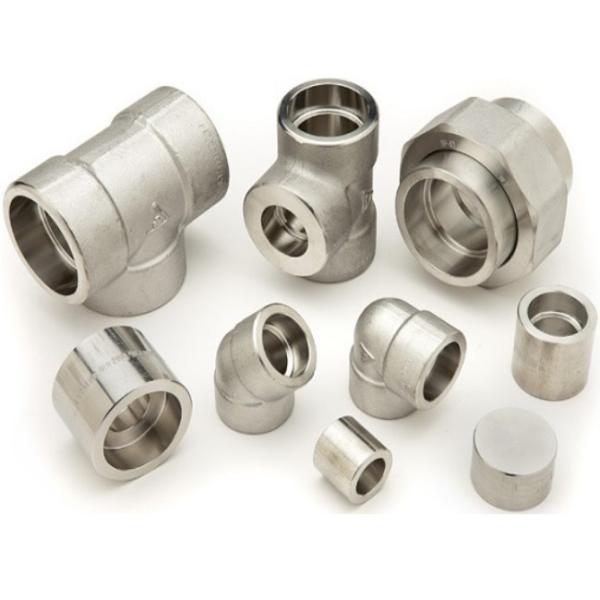

Forged Fittings Types
Socket weld and threaded fittings are available in multiple shapes
(elbows, tees, caps, adapters, couplings, etc), sizes (bore sizes
between 1/8 and 4 inches, and ratings as 2000#, 3000#, 6000#,
9000#) and material grades (the most common are ASTM A105, ASTM
A350 LF1/2/3/6 for low-temperatures, ASTM 182 for corrosive,
high-temperature applications). The class of the fitting represents
the maximum allowed pressure that the device can withstand.
Class 3000 fittings are used for pipes in schedule 80/XS; Class
6000 for pipes Sch. 160; Class 9000 fittings for pipes with larger
wall thickness (XXS).
Forged Elbow 45/90 Degrees
Forged elbows are used to change the direction of the piping system
by 45 or 90 degrees. Forged elbows are manufactured according to
ASME B16.11 in various material grades, either with socket weld or
threaded pipe connections. A special type is the so-called “street
elbow”.
Forged elbows 45 and 90 degrees, street elbow.
Forged Tee (Equal/Reducing)
Forged tees are used to branch a pipe at 90 degrees. Tees can be
straight (equal) or reducing.
Forged tees ASME B16.11 are available with socket weld or threaded
connections (NPT or BSP). The dimensions of forged tees are covered
by the MSS SP 75 and the ASME B16.11 specifications.
Forged Lateral
Forged laterals feature a Y shape and are used to branch a pipe at
30-degrees (or different angles, according to the piping
specifications).
Forged Plug (Round, Squared, Hex)
Forged plugs are available with a round, squared or hexagonal head
and are used to blind pipes.
Bushings
Hexagonal bushings are manufactured in accordance with ASME B16.11
and are used to join two threaded items of a different size.
Couplings (Half, Full)
Couplings are forged fittings manufactured in accordance with ASME
B16.11 and are used to join pipes.
They are available in half or full size and with socket weld or
threaded connections (or a combination of the two for special
piping applications).
Reducers and Reducer Inserts
Reducers are available in two main types, called 1 and 2. They are
used to connect pipes and reduce the bore size.
Union
Unions are available in the male to female, female to female types,
lug nut, and Rockwood design. Unions comply with the MSS SP 83
standard.
Welding Boss
SOCKET WELD VS. THREADED FITTINGS

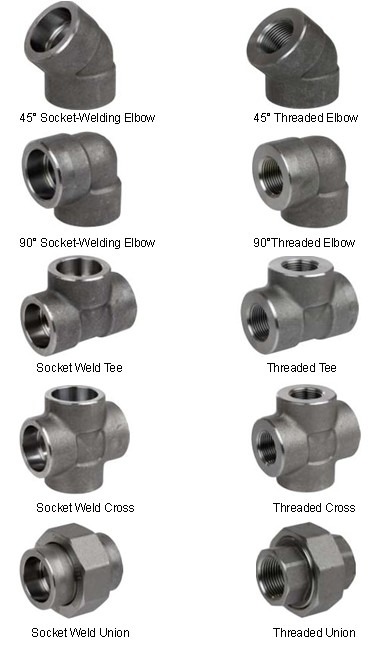

ASME B16.11 forged fittings are available with two types of end
connections, which are called “socket weld” and “threaded” (shown
in the picture).
SOCKET WELD FITTINGS
Socket weld fittings are connected to pipes by fillet welds,
whereas threaded fittings are screwed onto the pipe (or
vice-versa).
A socket weld fitting (left side) and a threaded fitting (right
side).
Socket weld fittings are used for applications where strong and
long-lasting connections are required. Socket weld fittings are very reliable but are time-consuming to
install in a piping system (due to the heavy workload caused by
welding operations on small parts).
Socket weld fittings are available in sizes from 1/8 to 4 inches
and in classes between 2000# and 9000#.
The typical applications for socket weld fittings are:
Steam
Explosive fluids and gases
Acids and toxic fluids
Long service / durable installations
Fillet weld vs. Butt Weld: a butt welding connection fills the gaps
between two devices, that are beveled at 30 degrees.
THREADED FITTINGS
Threaded fittings are used for less-critical piping systems, such
as water distribution, fire protection, and cooling, or for
low-pressure installations not subject to vibration, elongation and
bending forces. Threaded pipe fittings are not suited for fluids with constantly
changing temperatures, as sudden changes may crack the connection.
The two major types of threads are the BSP and NPT, which are not
compatible one with the other:
BSP Fittings
BSP means “British Standard Pipe” and can be further divided into
the BSPT (tapered) and BSPP (parallel) variations. The threads have
a 55° angle in this case. BSP threaded fittings are less common
than NPT threaded fittings in the oil and gas industry
NPT Fittings
NPT stands for “National Pipe Tapered” and is the dominant standard
for threaded forged fittings in the oil and gas industry. NPT
threading is covered by the ASME B1.20.1 specification and is based on 60° thread flank angles (vs. 55° of
the BSP type).
BSP (BSPP/BSPT) vs NPT: thread angle 55 vs 60 Deg.
