SS400 GLV JIS 5K NBG Flat Face Flange 400A JIS B2220 Carbon Steel

GLV-Galvanization

Galvanization is the process of applying a protective zinc coating to steel or iron, to prevent rusting. The most common method is hot-dip galvanizing, in which the parts are submerged in a bath of molten zinc. Zinc can tend to be temperamental during the actual galvanization process. It’s important to take enough time to let galvanized steel cool down, so that the zinc doesn’t peel off. Galvanization isn’t as effective if the zinc is not binding to the steel. The right coating thickness must be applied.

Galvanized flanges are superior to exposure to the elements versus painted carbon steel. They offer longer life cycles in many cases as well, due to their resistance to corrosion from rain and other naturally occurring weather/climate issues.

Material-SS400

SS 400 Is A Structural Hot Rolled Steel For General Structural Applications. Its Designations Defined In JIS G3101 Standards.

“JIS” Stands for Japanese Industrial Standard and are published by the Japanese Standards Association (JSA) Provided in JIS2K, JIS5K, JIS10K, JIS16K, JIS20K, JIS30K, JIS40K and JIS63K pressure classes, it can be offered in Slip On, Blind, and Weld Neck varieties in Raised Face or Flat Face configurations.

Face Type-Flat Face

The Flat Face flange has a gasket surface in the same plane as the bolting circle face. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting.

Flat face flanges are never to be bolted to a raised face flange. When connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. This is to keep the thin, bittle cast iron flange from being sprung into the gap caused by the raised face of the carbon steel flange.

Product Information

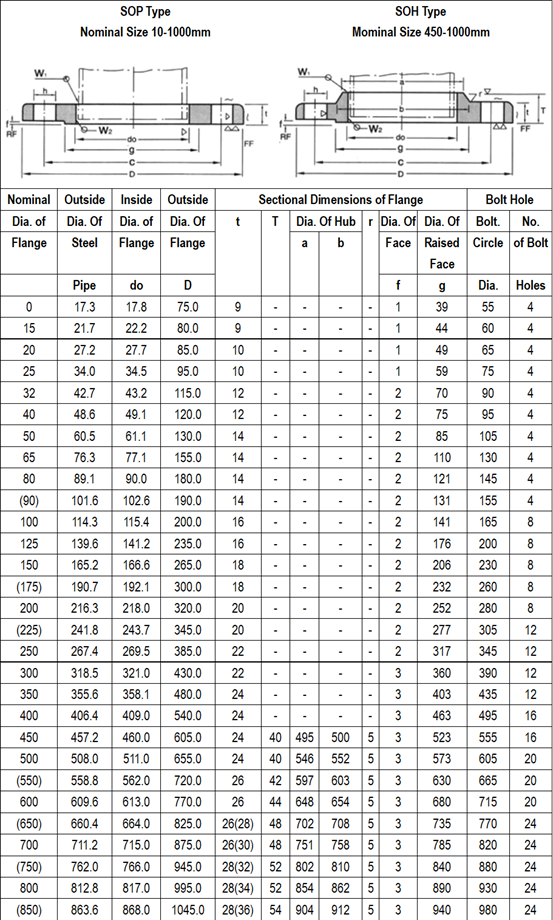

JIS 5K Flange Dimensions in mm

Kasugai Shanghai, a subsidiary of Kasugai Group headquartered in Osaka, Japan, was established in 2003 as a representative office in Shanghai, China, and was upgraded to a company in 2008. Kasugai Shanghai serves as an important force of Kasugai Group in Asia, and over the past 20 years, it has become a key player in the industrial pipes, fittings, flanges, and valves market.

Kasugai Shanghai leverages the resources and manufacturing capabilities of local suppliers in China to provide a wide range of products, including stainless steel, carbon steel, duplex/super duplex steel, alloy steel, nickel alloy, and titanium alloy, according to various international standards such as ASTM/ASME/ANSI, JIS, EN, and DIN. The company also has a local support team and an on-site quality inspection team to ensure that products meet the specifications and quality requirements of customers.

With the support of high-quality local suppliers and a strong commitment to customer satisfaction, Kasugai Shanghai strives to provide reliable products and services to customers in Asia and beyond. Kasugai Group's establishment of Kasugai Shanghai and other international operations demonstrates their proactive approach to globalization and their commitment to meeting the needs of customers in a rapidly changing global market.

Kasugai Group Company Profile:

Foundation : June, 1925

Legal Representative : Akinori Kasugai

Number of employees : 140 persons (150 persons including employees of the affiliates) As of March 21, 2023

Scope of business : wholesaler and trade firm of industrial pipe/tube, fittings, flanges and valves

Kasugai Group Locations:

Head Office

4-14-2 Shinmachi, Nishi-ku, Osaka 5500013, Japan

TEL: 81-6-6538-7281

FAX: 81-6-6538-2273

E-MAIL: contact@kasugai-group.co.jp

Shanghai

Rm. A8415 Building A8, No. 808 Hongqiao Road, Xuhui District, Shanghai 200030, China.

TEL: 86-21-6447-1967

FAX: 86-21 6447-7841

E-MAIL: zhanghb@kasugai-group-co.jp

Other Branch Offices and Joint Ventures:

Fukuoka, Kitakyushu, Tokai, Kyoto, Shunan, Tokyo, USA (Watchung, N.J.), Jiangyin (Jiangsu, China)

Our Strengths:

Since our foundation in 1925, we have continuously taken steps to further grow our businesses. Global capabilities, professionalism, and trust. These three strengths are the reason that customers continue to choose Kasugai, regardless of the period.

-Global capabilities

We embarked on overseas procurement ahead of our competitors in the industry and have established a supplier network that can meet a variety of market demands. We are successfully chosen by many overseas customers
as a global procurement partner.

- Professionalism

Leveraging expertise cultivated over many years, we deliver optimal products to the optimal place at the optimal time. Our excellent information gathering and problem-solving abilities are also invaluable for solving customer issues.

- Trust

We provide smooth, prompt services by cultivating solid relationships of trust with suppliers. We believe that building stronger partnerships is the source of our growth.
