    AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Socket-Welding Cap

    Ask Lasest Price
    Brand Name : Kasugai
    Model Number : AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Socket-Welding Cap
    Price : Negotiable
    Payment Terms : L / C , T / T
    Supply Ability : 500 ton per month
    Delivery Time : 30 - 60 working days
    Certification : ISO PED AD2000
    • Product Details
    • Company Profile

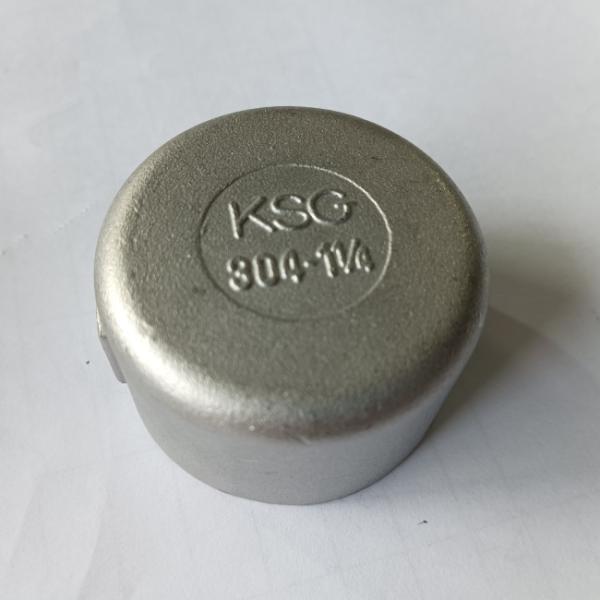

    AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Socket-Welding Cap

    AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Socket-Welding Cap


    Product Information

    Product NameAISI 304 MSS SP-114 CL1000 Stainless Steel Cast Socket-Welding Cap
    Fitting TypeSocket-Welding Cap
    DimensionsMSS SP-114:2018
    Size Range1¼”
    Pressure ClassClass 1000
    MaterialsAISI 304/L

    Standard & Materials:AISI 304/L

    The SAE/ANSI 304 (AISI 304) is the most commonly available and used type of stainless steel. It is also referred to as 18/8 stainless steel, A2 stainless steel (as per the ISO 3506), or 304S15 (as per the British Standard). This is an austenitic chromium-nickel alloy which practically means that it has a very high corrosion resistance. It is also nonmagnetic and can’t be hardened through heat treatment. As AISI 304 can withstand extremely corrosive environments and can be shaped, machined and welded relatively easy, it is very popular for a wide range of applications.


    AISI 304/L Chemical Composition (%)

    GradeC, maxCrMn, maxNiP, maxS, maxSi, max
    AISI 3040.0818~2028~10.50.0450.031
    AISI 304L0.0318~2028~120.0450.031

    AISI 304/L Mechanical Properties

    Mechanical Properties304304L
    Hardness, Knoop138158
    Hardness, Rockwell B7082
    Hardness, Vickers129159
    Tensile Strength, Ultimate505 MPa564 MPa
    Tensile Strength, Yield215 MPa210 MPa
    Elongation at Break70%58%
    Modulus of Elasticity193~200 GPa193~200 GPa
    Charpy Impact325 J216J

    SP-114 Dimensions of Class 1000 Wrought Socket-Welding Fittings (in inches)



    NPSCenter-to-End Elbows, Tees & CrossesCenter-to-End 45o ElbowsSocket Bore (min.)/(max.)

    Bore Dia.

    (min.)/(max.)

    Socket Depth (min.)Metal ThicknessOutside Band Dia. (min.)Full Coupling Length (min.)Cap Height (min.)Flat Top Cap Thickness (min.)
    ACSBBDSDGH1WPG1
    0.810.690.420/0.4400.227/0.3370.320.090.551.000.680.09
    ¼0.810.690.555/0.5750.380/0.4400.320.090.741.000.680.09
    0.930.810.690/0.7100.515/0.5750.320.100.861.120.810.10
    ½1.120.870.855/0.8750.644/0.7040.320.101.051.380.930.12
    ¾1.311.001.065/1.0850.854/0.9140.370.121.301.501.060.13
    11.330/1.3501.067/1.1270.440.131.611.621.310.15
    1.675/1.6951.412/1.4720.500.141.862.001.620.17
    1.915/1.9351.652/1.7120.500.152.172.121.620.19
    22.406/2.4262.127/2.1870.560.172.742.501.750.22
